Latest Product Release-Fully Isolated Weighing Transmitter Modules

These days, we have new products-Weighing Transmitter Modules(2/4/6/8/12/16-channel options).

1: DIP Switch Settings

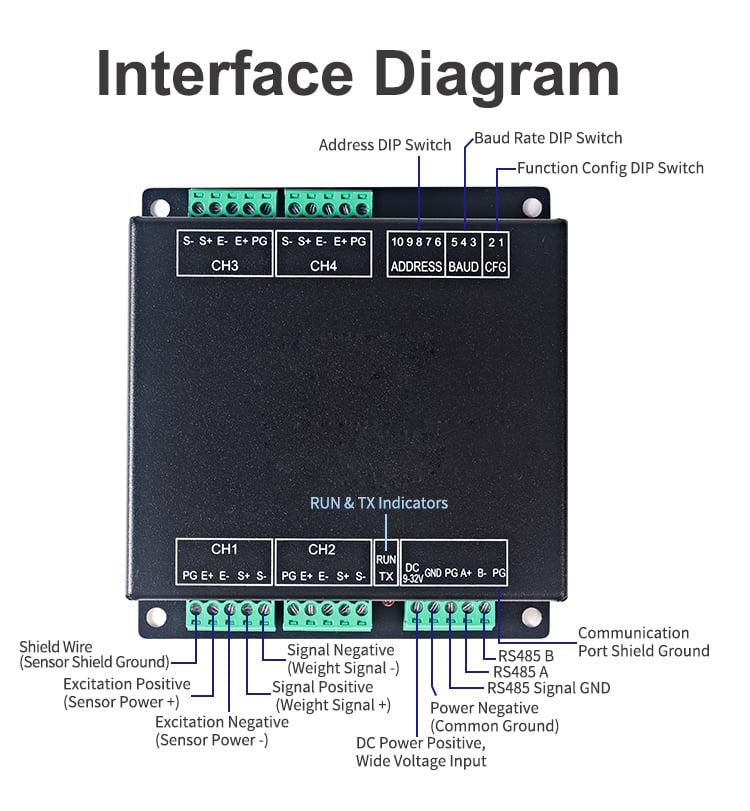

To simplify operation, the board features a 10-position red DIP switch used to configure RS485 parameters—specifically the baud rate, parity mode, and Modbus hardware address.

Note: For all company products equipped with DIP switches, the switch settings must be configured prior to initial use if RS485 communication is required; any adjustments made to the DIP switches will take effect the next time the device is powered on.

2.Basic Functions:

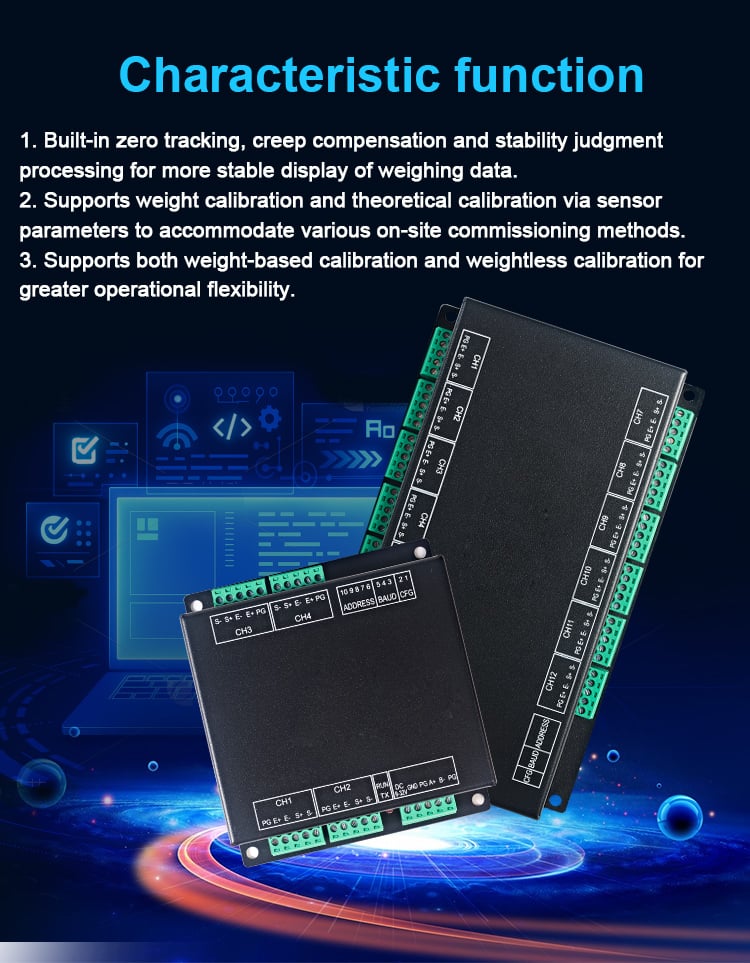

Calibration, taring, real-time weight, zero tracking, creep tracking, etc.

3.Modbus Register Address Description

You could contact customer service via WhatsApp, WeChat or Email address to get the user manual.

4. Host Computer Software

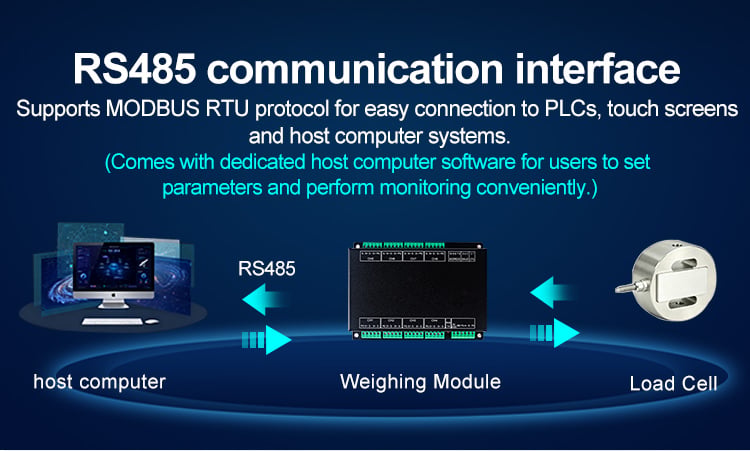

The weighing transmitter module comes with supporting host computer software for convenient parameter configuration and real-time monitoring of measurement data.

The note: Our company is mainly in HMI PLC All-in-one, RS485 232 Ethernet Modules, PLC, HMI, WIFI Modules, LoRa Module, Weighing Transmitter Module, SPDT/DPDT/Single Open Relay Modules, AC/DC Amplifier Board, Switching Power Supply, Customized Modules etc. automation products.
