Product Description

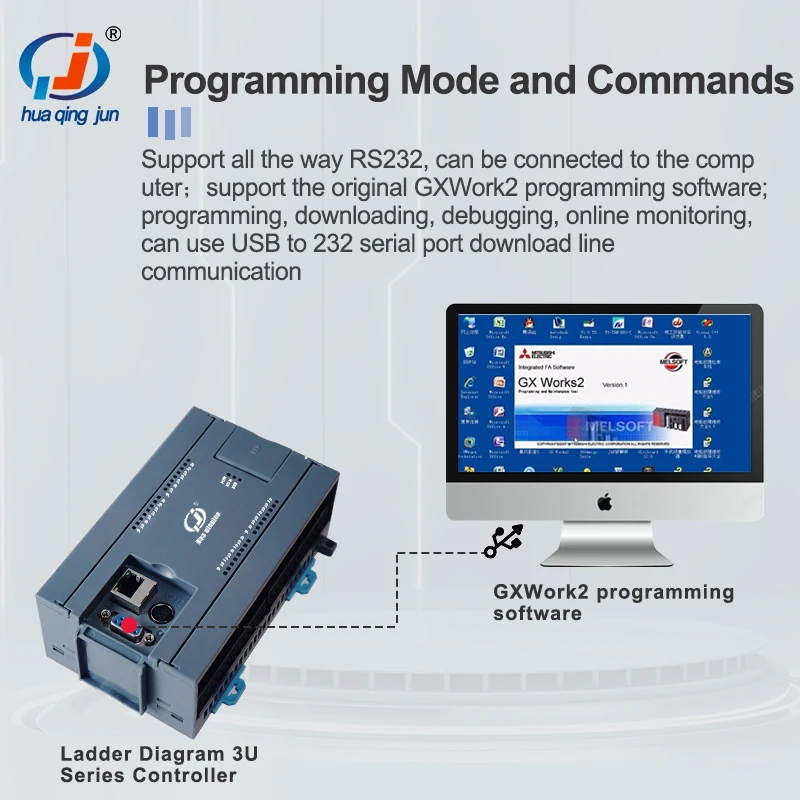

PLC software
It is compatible with FX3U PLC GX Works2 software.

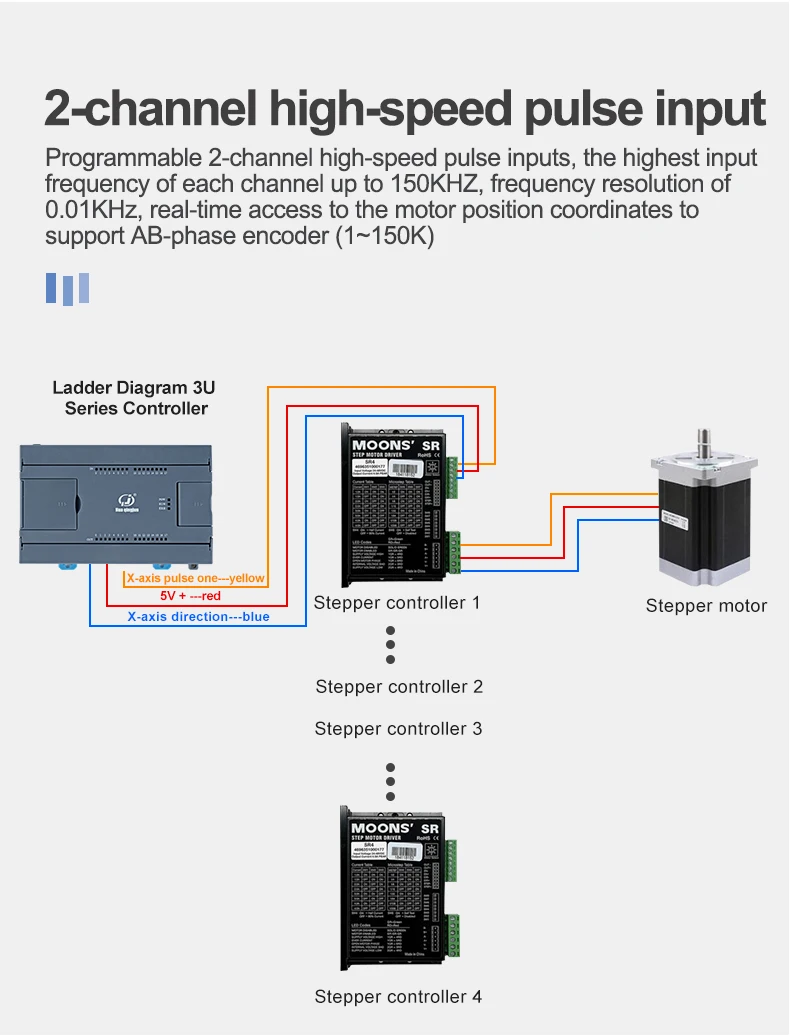

High-speed input
2-channel X00 X01 (200khz)
Trigger voltage 9-28VDC
Trigger current >3mA
232 communication port
channel number: 1
Baud rate range: 1200~115200Bps
Data format: 8N1/8O1/8E1/8N2/7N1/7O1/7E1/7N2
Protocol: MODBUS-RTU
Isolated voltage: 24VDC

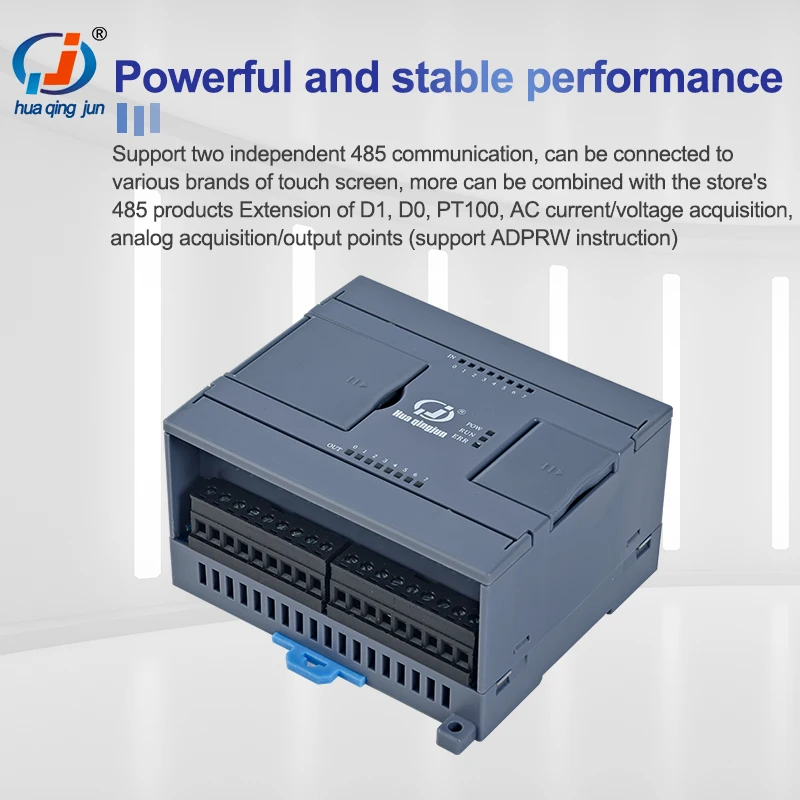

485 communication port
channel number: 2
Baud rate range: 1200~115200Bps
Data format: 8N1/8O1/8E1/8N2/7N1/7O1/7E1/7N2
Protocol: MODBUS-RTU
Isolated voltage: 5kVrms
High Speed Outputs
8-channel
Output form: NPN
Frequency range: 1Hz- 150KHz
Control voltage: 5V/24V (internal jumper switching)
